Overview
A 3/8-inch quick-connect electrode probe with integrated NTC temperature sensing for analog EC/TDS front ends. It gives OEMs a compact wetted component while leaving measurement electronics in the host product.
Probes & AccessoriesCurrent model
3/8-inch NTC Probe
EC / TDS / Salinity Probe with NTC | water quality measurement
Food-contact quick-connect electrode probe with integrated NTC temperature sensing.
Original manufacturer · Factory-direct supply
Questions go straight to the source
Ask about parameters, interfaces, calibration, versions, customization or volume supply. The answer does not need to pass through layers of resellers.
- In-house R&DOptics, sensor-interface electronics, algorithms, firmware and mechanical integration are developed as one product system.
- Production capabilityFrom prototype and pilot build to assembly, functional testing and volume delivery, production follows the product team’s technical definition.
- Quality traceabilityModel, specification, firmware or hardware version and test requirements remain connected, reducing ambiguity between sales claims and delivered goods.
Overview
Why this product
Food-contact quick-connect electrode probe with integrated NTC temperature sensing.
A 3/8-inch quick-connect electrode probe with integrated NTC temperature sensing for analog EC/TDS front ends. It gives OEMs a compact wetted component while leaving measurement electronics in the host product.
Food-contact quick-connect electrode probe with integrated NTC temperature sensing.
- ✓EC, TDS and salinity compatible
- ✓Titanium, gold and platinum electrode options
- ✓High-pressure solid molded construction
- ✓Integrated precision NTC temperature sensor
- ✓RoHS-oriented materials and 3/8-inch quick connection
Verified technical detail
Information to provide for selection · Calibration, validation and maintenance
Food-contact quick-connect electrode probe with integrated NTC temperature sensing.
Interface / Supply
Electrode + NTC leads · Host circuit dependent
Measurement Range / Accuracy
Electrode and cell-constant dependent · Application calibration dependent
Installation and commissioning
Use the lowest practical excitation current to reduce electrode wear.
Verified technical detail
Engineering and integration
The official Chinese document is currently shared by every language version.
Engineering and integration
- 01
Electrode output plus integrated NTC temperature signal.
- 01
Public drawing specifies up to 5 V across the probe and operating current up to 10 mA.
- 01
10 kΩ, B3435, 1% NTC configuration is documented for the available assembly.
- 01
Range and accuracy depend on electrode material, cell geometry, host ASIC and calibration.
Installation and commissioning
- ✓
Use the lowest practical excitation current to reduce electrode wear.
- ✓
Match the host temperature network to the installed NTC option.
- ✓
Calibrate the complete water path after production assembly.
Product and document views
Public documents

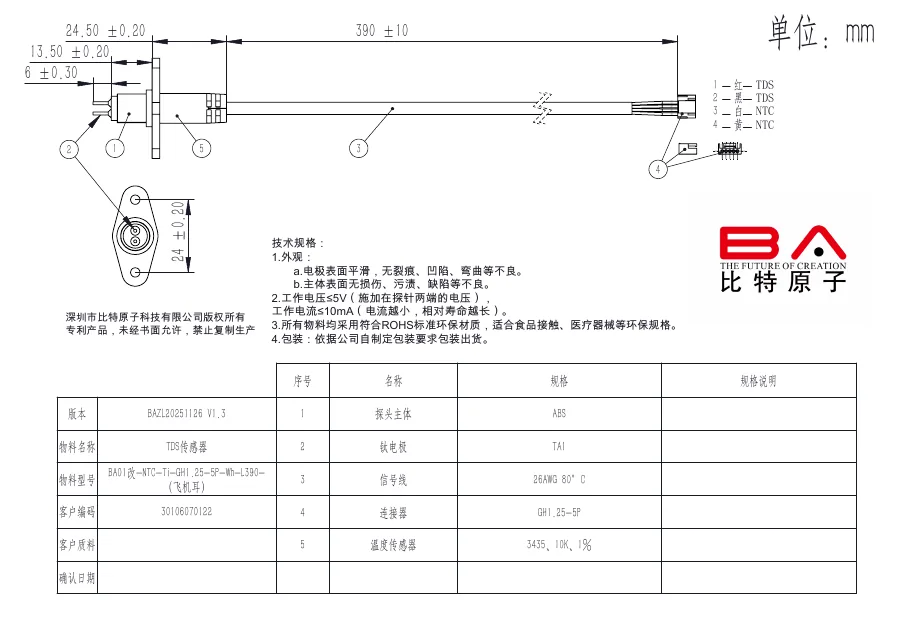

3/8 英寸 NTC 探头中文规格图Applications
Typical applications
Use the product as part of a complete measurement workflow, not as an isolated component. Confirm the water matrix, target range and decision that the data must support.
Drinking Water & Purification
Integrated TDS and conductivity components for dispensers, purifiers, filter-life estimation and quality indication.
Industrial Process Water
Digital sensors and embedded ASICs for equipment builders, automation systems and water-intensive production.
Smart Appliances
Small-footprint sensing electronics for connected water devices, pet appliances and intelligent home products.
Typical applications are reference cases, not capability limits.
Propose a new application →The applications above are common examples. If this measurement principle may solve a different problem in your field, we welcome a feasibility discussion.
Technology
From selection to reliable data
- 01
Define the measurement objective and expected range.
- 02
Match the sensor, probe or analyzer to the real sample matrix.
- 03
Complete mechanical, electrical and communication integration.
- 04
Validate results with reference samples before routine operation.
Engineered for dependable integration
Integration and installation checklist
- ✓Target parameters and expected concentration range
- ✓Water matrix, fouling risk and installation method
- ✓Communication interface and sampling frequency
- ✓Calibration, validation and maintenance strategy
- ✓Information to provide for selection: 3/8-inch NTC Probe · Probes & Accessories
Calibration, validation and maintenance
Validate the complete system with representative samples. Record the reference method, temperature and installation conditions. Recheck after cleaning, replacement or process changes, and define a maintenance interval from actual fouling rather than a fixed assumption.
FAQ
Frequently asked questions
Is this product ready to use in every water matrix?
The product platform is defined, but range, calibration and installation must still be confirmed against the actual water matrix and project objective.
What should be checked before integration?
Confirm power, interface, cable length, enclosure, sampling frequency, probe position and the host system data format.
How should measurement quality be verified?
Compare representative samples with an agreed reference method and document the acceptance criteria before commissioning.
Can datasheets, protocol information and engineering support be supplied?
Yes. Ask for the current ordering specification and describe your application so the correct materials can be supplied.
