A compact gold-plated copper planar probe using food-grade nylon/PP and an integrated NTC. It is designed for direct incorporation into conductivity and TDS appliances.
Probes & AccessoriesCurrent model
TFE-1-A1
Compact Planar Ring-electrode Probe | water quality measurement
Compact planar electrode assembly for embedded conductivity and TDS product designs.
Original manufacturer · Factory-direct supply
Questions go straight to the source
Ask about parameters, interfaces, calibration, versions, customization or volume supply. The answer does not need to pass through layers of resellers.
- In-house R&DOptics, sensor-interface electronics, algorithms, firmware and mechanical integration are developed as one product system.
- Production capabilityFrom prototype and pilot build to assembly, functional testing and volume delivery, production follows the product team’s technical definition.
- Quality traceabilityModel, specification, firmware or hardware version and test requirements remain connected, reducing ambiguity between sales claims and delivered goods.
Overview
Why this product
Compact planar electrode assembly for embedded conductivity and TDS product designs.
A compact gold-plated copper planar probe using food-grade nylon/PP and an integrated NTC. It is designed for direct incorporation into conductivity and TDS appliances.
Compact planar electrode assembly for embedded conductivity and TDS product designs.
- ✓Planar ring-electrode geometry
- ✓Integrated temperature sensing
- ✓Smooth, easy-clean surface
- ✓Suitable for direct product integration
- ✓Supports insert-molded structures
Verified technical detail
Information to provide for selection · Calibration, validation and maintenance
Compact planar electrode assembly for embedded conductivity and TDS product designs.
Interface / Supply
Electrode and temperature leads · Host circuit dependent
Measurement Range / Accuracy
EC / TDS application dependent · Electrode and circuit dependent
Installation and commissioning
Do not exceed the specified working temperature or expose the plated electrode to incompatible cleaners.
Verified technical detail
Engineering and integration
The official Chinese document is currently shared by every language version.
Engineering and integration
- 01
Gold-plated copper electrode with food-grade nylon/PP structure.
- 01
Integrated 10 kΩ ±1% NTC, B value 3435.
- 01
Specified working temperature 0–60 °C.
- 01
Range and accuracy depend on the selected interface ASIC and completed product calibration.
Installation and commissioning
- ✓
Do not exceed the specified working temperature or expose the plated electrode to incompatible cleaners.
- ✓
Match the host NTC circuit to 10 kΩ / B3435.
- ✓
Perform calibration after final assembly and sealing.
Product and document views
Public documents

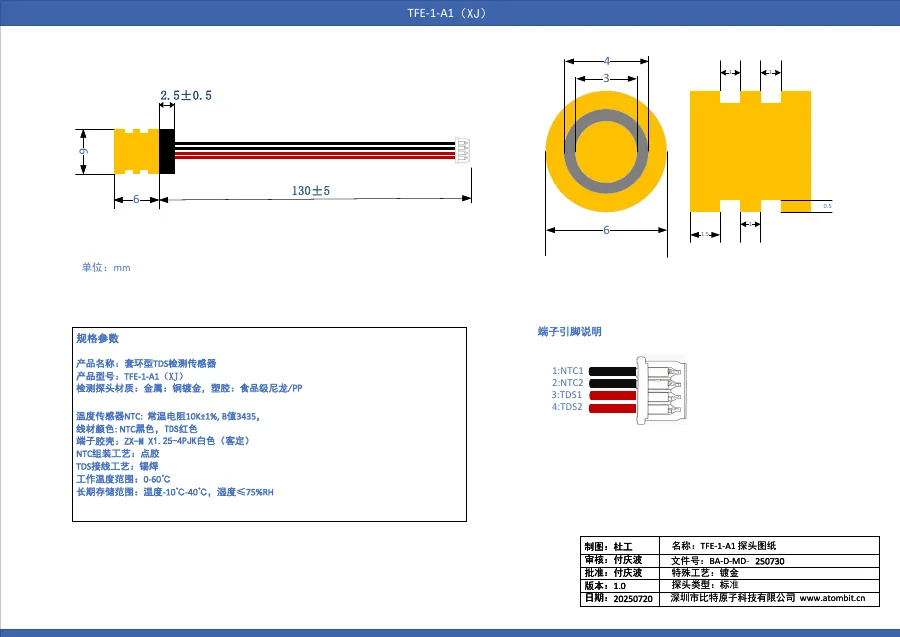

TFE-1-A1 中文规格图Applications
